| Place of Origin: | China |
|---|---|
| Brand Name: | DONSANG |
| Certification: | CE,ISO9001 |
| Model Number: | DSB68 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Standard Wooden Box |
| Delivery Time: | 20 Working Days |
| Payment Terms: | Negotiable |
| Supply Ability: | 100 Set Per Month |
| Model: | Side Type | Operation Pressure: | 110~140 Kgf/cm2 |
|---|---|---|---|
| Oil Flow: | 40~70 L/min | Impact Rate: | 450~950 Bpm |
| Nitrogen: | 14-17 Bar | Chisel Diameter: | 68 Mm |
| Chisel Length: | 700 Mm | Chisel Weight: | 18 Kg |
| Hose Size: | PF1/2'' Inch | Noise Level: | 5-10 M |
| Suitable Excavator: | 4.8~8.0 Ton | Impact Force: | 560 J |
| Total Length: | 1330 Mm | Operation Weight: | 281 Mm |
| Highlight: | Hydraulic Rock Breaker 5 Tonne,5 Tonne Excavator Rock Breaker,Backhoe Hydraulic Rock Breaker |
||

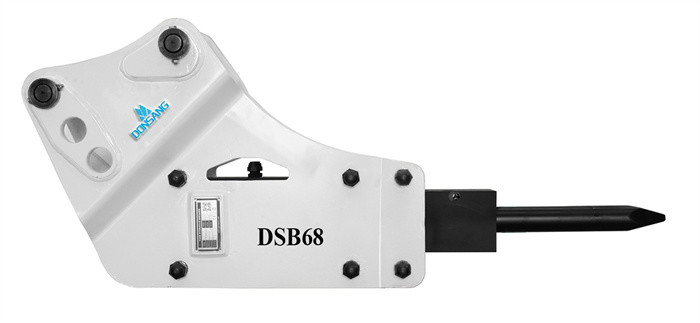

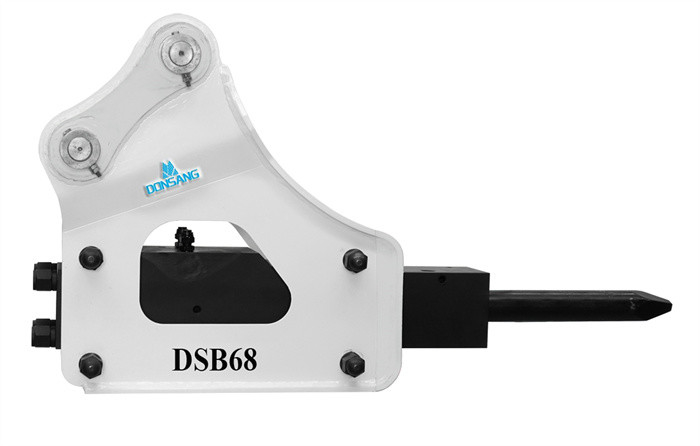

Open Type Box Type Side Type Hydraulic Rock Breaker For Excavator Attachment
• Never attempt to separate enormous articles from the middle, as it will altogether expand the hydraulic rock breaker breakout power and influence it to worry the hydraulic rock breaker and overheat the destruction apparatus. To bypass this issue, move toward enormous articles from the external edges and progressively work your direction internal.
• Just utilize a water driven breaker for its expected reason. While working a water driven hydraulic rock breaker, don't utilize it to lift, move, or pry objects. There are different instruments intended to deal with those capabilities.
Our All Models Data
| Item | Unit | DSB53 | DSB68 | DSB75 | DSB85 | DSB100 | DSB135 | DSB140 | DSB150 | DSB155 | DSB165 | DSB175 | DSB180 | |
| Total Length (WITH MOUNT CAP& TOOL) |
SIDE TYPE | mm | 1,140 | 1,330 | 1,699 | 1,767 | 1,939 | 2,289 | 2,414 | 2,603 | 2,776 | 2,919 | 3,189 | 3,253 |
| OPEN TYPE | mm | 1,372 | 1,641 | 1,719 | 2,160 | 2,339 | 2,719 | 3,030 | 2,904 | 3,119 | 3,359 | 3,617 | 3,753 | |
| BOX TYPE | mm | 1,400 | 1,658 | 1,741 | 2,200 | 2,400 | 2,766 | 3,075 | 3,075 | 3,250 | 3,450 | 3,711 | 3,760 | |
| Operation Weight (WITH TOOL) |
SIDE TYPE | kg | 137 | 281 | 398 | 618 | 845 | 1,605 | 1,812 | 2,530 | 2,752 | 3,189 | 4,055 | 4,586 |
| OPEN TYPE | kg | 132 | 275 | 390 | 604 | 920 | 1,784 | 1,975 | 2,750 | 2,818 | 3,514 | 4,370 | 4,600 | |
| BOX TYPE | kg | 161 | 348 | 456 | 675 | 978 | 1,942 | 2,174 | 2,895 | 2,906 | 3,586 | 4,480 | 4,658 | |
| Operation Pressure | kgf/cm2 | 90~120 | 110~140 | 120~150 | 130~160 | 140~170 | 160~180 | 160~180 | 160~180 | 160~180 | 160~180 | 160~200 | 180~220 | |
| psi |
1,280~ 1,706 |
1,564~ 1,990 |
1,706~ 2,133 |
1,706~ 2,133 |
1,990~ 2,417 |
2,275~ 2,559 |
2,275~ 2,559 |
2,275~ 2,559 |
2,275~ 2,559 |
2,275~ 2,559 |
2,275~ 2,559 |
2,559~ 3,128 |
||
| Oil Flow | l/min | 25~45 | 40~70 | 50~90 | 60~100 | 80~120 | 120~150 | 120~150 | 170~240 | 170~240 | 190~250 | 220~260 | 220~260 | |
| gpm | 6.6~11.9 | 7.9~13.2 | 13.2~23.8 | 15.8~26.4 | 21.1~31.7 | 31.7~39.6 | 31.7~39.6 | 44.9~63.4 | 44.9~63.4 | 50.1~66.0 | 58.1~76.5 | 58.1~76.5 | ||
| Impact Rate | bpm | 550~1000 | 450~950 | 400~900 | 400~800 | 450~630 | 350~500 | 250~400 | 380~480 | 320~450 | 280~370 | 240~320 | 210~300 | |
| Nitrogen | bar | 14-17 | 14-17 | 14-17 | 14-17 | 14-17 | 14-17 | 14-17 | 18-22 | 17-20 | 17-20 | 22-25 | 22-25 | |
| Chisel Diameter | mm | 53 | 68 | 75 | 85 | 100 | 135 | 140 | 150 | 155 | 165 | 175 | 185 | |
| inch | 2.08 | 2.67 | 2.95 | 3.34 | 3.93 | 5.31 | 5.51 | 5.9 | 6.11 | 6.48 | 6.88 | 7.27 | ||
| Chisel Length | mm | 550 | 700 | 750 | 850 | 1,000 | 1,200 | 1,200 | 1,300 | 1,400 | 1,400 | 1,500 | 1,600 | |
| Chisel Weight | kg | 9 | 18 | 29 | 32 | 57 | 121 | 137 | 170 | 193 | 227 | 272 | 320 | |
| Hose Size | mm | 13 | 13 | 13 | 19 | 19 | 25 | 25 | 25 | 32 | 32 | 32 | 32 | |
| inch | PF1/2'' | PF1/2'' | PF1/2'' | PF3/4'' | PF3/4'' | PF1'' | PF1'' | PF1'' | PF1-1/4'' | PF1-1/4'' | PF1-1/4'' | PF1-1/4'' | ||
| Noise Level | m | 4/8 | 5/10 | 6/12 | 6/12 | 7/14 | 16-22 | 16-22 | 26-35 | 26-35 | 35-40 | 38-45 | 42-48 | |
| Suitable Exca | ton | 2.1~4.0 | 4.8~8.0 | 6.0~9.0 | 8.0~12.5 | 12~15 | 20~26 | 22~27 | 25-32 | 26~35 | 30~42 | 35~45 | 36~45 | |
| Impact Force | j | 355 | 560 | 790 | 1320 | 1980 | 3450 | 3720 | 5250 | 5750 | 7040 | 14800 | 17550 | |
| Item | ||
| Model | DSB68(Open Type) | Unit |
| Total Length | 1330 | mm |
| Operation Weight | 281 | mm |
| Operation Pressure | 110~140 | kgf/cm2 |
| Oil Flow | 40~70 | l/min |
| Impact Rate | 450~950 | bpm |
| Nitrogen | 14~17 | bar |
| Chisel Diameter | 68 | mm |
| Chisel Length | 700 | mm |
| Chisel Weight | 18 | kg |
| Hose Size | PF1/2'' | inch |
| Noise Level | 5-10 | mm |
| Suitable Excavator | 4.8~8.0 | ton |
| Impact Force | 560 | j |
Suitable Carrier of Hydraulic Rock Breaker
| EXCAVATOR (Ton) |
DSB53 2.1~4.0 |
DSB68 4.8~8.0 |
DSB75 6.0~9.0 |
DSB85 8.0~12.5 |
DSB100 12~15 |
DSB135 20~26 |
DSB140 22~27 |
DSB150 25-32 |
DSB155 26~35 |
DSB165 30~42 |
DSB175 35~45 |
DSB180 45-50 |
| SANY | SY35U | SY55C SY60C SY65C |
SY75C SY85C |
SY85C SY95C |
SY115C SY135C |
SY215C SY225C |
SY215 SY225 SY245 |
SY245 SY265 |
SY265C SY285C SY305C |
SY305C SY335H SY365H |
SY465H SY485H |
SY485H |
| XCMG | XE35D | XE55D XE60D |
XE75D XE80D |
XE85D | XE135D XE150D |
XE200D XE215D |
XE215D | XE270DK | XE305D | XE305D XE370D |
XE470D | XE470E |
| LONGKING | 6060 6065 |
6075 6085 |
6085 | 6150 | 6215 | 6215 6225 6235 |
6245 6285 |
6285 6365 |
6365 | 6490 | 6490 | |
| LIUGONG | 906D | 908D 909D |
909D 910D |
P10D P15E P16D |
920E 922E |
922E 925E 926E |
926E 927E |
933E | 033E 936E |
948E 950E |
950E | |
| CATERPILLAR | 303-5E | 305-5E 306E |
307E 308E |
308E | 313D 318D |
320D 323D |
320D 323D 325D |
325D 326D |
326D 329C 330D |
336D | 339C 340D |
340D 345D 349D |
| VOLVO | EC30/25 EC35 ZL302 |
CE55 | CE120 CE140 |
EC210 | EC210 EC240 |
EC290 | EC290 | EC360 | EC460 | EC480 | ||
| HITACHI | EX25/27 EC30/33 EC34 UE30 |
ZX60 ZX60W |
ZX60 ZX60W |
ZX100 ZX130W ZX150 ZX100WD |
ZX200 ZX210 ZX220 ZX270 |
ZX230 ZX240 ZX270 |
ZX280 ZX300 |
ZX300 ZX330 ZX350 |
ZX360 ZX400 |
ZX400 | ZX400 ZX450 |
|
| KOMATSU | PC10 PC15 PC12 PC27 |
PC40 PC45 PC50 PC60 |
PC45 PC50 PC60 |
PC90 PC100 |
PC120 PC150 PW150 |
PC200 PC220 PW210 |
PC200 PC220 |
PC250 PC270 PC300 |
PC250 PC270 PC300 |
PC400 | PC450 | PC500 |
| SUMITOMO | S25 S140 SH75 S180 |
S140 SH75 S160 |
S140 SH75 S160 |
S40 S70 SH120 |
SH200 S260 |
SH200 SH240 S260 |
S90 SH300 SH330 |
S340 S390 |
S100 S430 SH400 SH450 |
SH460 SH480 |
SH480 SH500 |
|
| KATO | HD180 HD250 HD400 |
HD250 HD400 |
HD650 | HD450 HD500 HD550 HD650 |
HD700 HD800 HD820 |
HD820-5 HD880 HD1023 |
HD1203 HD1100 HD1200 |
HD1023R HD1430R |
HD1638R | HD2048R | ||
| DOOSAN | DH30 DSL602 SOLAR 30/035 |
DH55 DH60 |
SOLAR70 | DH80W | DH130 DH130W DH150 DH170 |
DH220 DH225 |
DH225 DH258 |
DH300 SOLAR280/ 290/320/330 |
DH300 | DH360 DH420 DH500 |
DH450 DH500 |
|
| HYUNDAI | R35 | RB55-7 RB60-7 |
RB130-7 RB175 |
RB200 RB210 R215 |
R220 R205-7 R255 |
R260 R290 |
R290 R360 R420 |
R420 R450 |
R450 R455 |
R450 R455 R485 |
||
| LIEBHERR | L506/507/508 509/512/514 |
A308 | A900 A314 |
A316 | A/R904/912 914/921/ 932/941 |
R924 | R934 | R944 R954 |
R964 R974 |
Latest Version of Carrier List Please Contact With Us or Confirm With Us Before Placing Orders.
Other Details

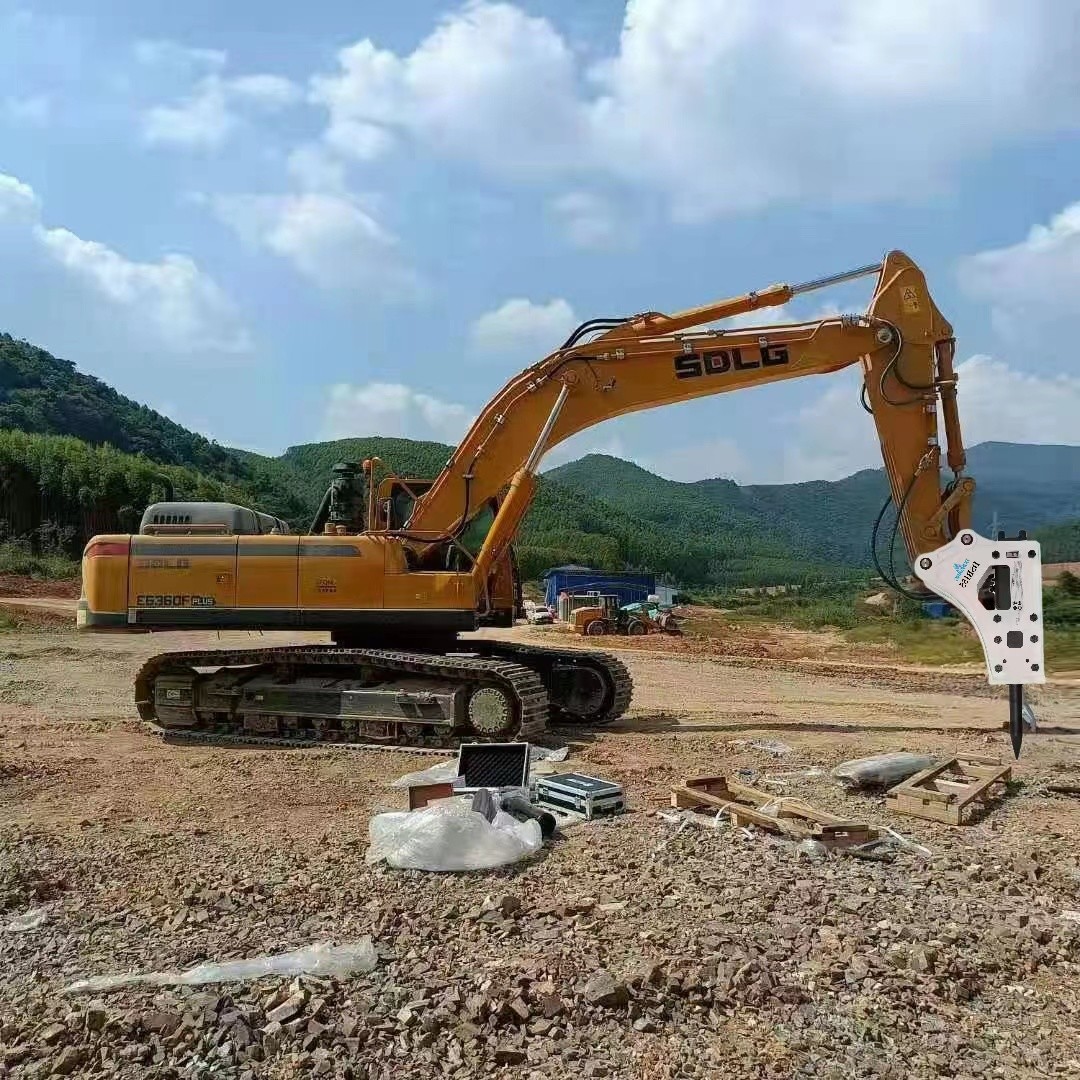

Some Picture of Hydraulic Rock Breaker
Pay Attention When Using Hydaulic Rock Breaker
