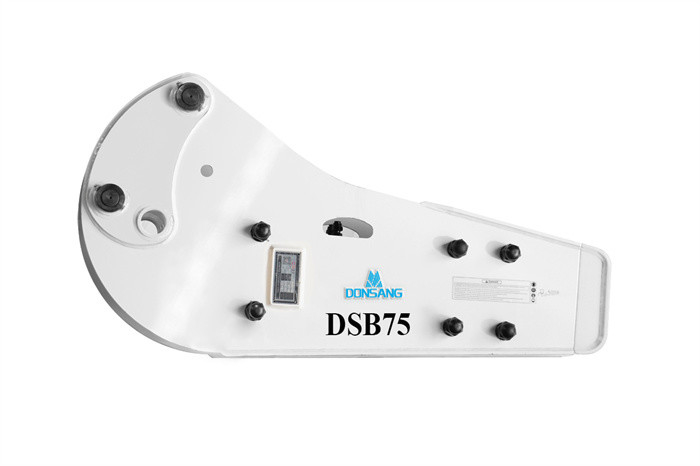

Banana Type Excavator Hydraulic Rock Breaker With 75mm Chisel

Basic Information
Place of Origin: China
Brand Name: DONSANG
Certification: CE,ISO9001
Model Number: DSB75
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Wooden Box
Delivery Time: 20 Working Days
Payment Terms: Negatiable
Supply Ability: 100 Set Per Month
Model: Side Type Operation Pressure: 120~150 Kgf/cm2
Oil Flow: 50~90 L/min Impact Rate: 400~900 Bpm
Nitrogen: 14-17 Bar Chisel Diameter: 75mm
Chisel Length: 750 Mm Chisel Weight: 29 Kg
Hose Size: PF1/2'' Inch Noise Level: 6-12 M
Suitable Excavator: 6.0~9.0 Ton Impact Force: 790 J
Total Length: 1699 Mm Operation Weight: 398 Mm
Highlight:

Banana Type Excavator Hydraulic Rock Breaker

,

75mm Chisel Hydraulic Rock Breaker

,

Banana hydraulic breakers for excavators

Open Type Box Type Side Type Banana Type Hydraulic Rock Breaker For Excavator Attachment



Oil the pressure driven hydraulic rock braker at regular intervals for ideal outcomes. You ought to likewise lube the device at whatever point it seems sparkling inside the front head. Make a point to utilize the oil suggested by the producer. For instance, BTI etch glue works perfectly as a grease for BTI's pressure driven hydraulic rock breakers. Assuming you utilize general EP reason oil, it can run down the apparatus and soften without appropriately greasing up the destruction gear.



Tips for Hydraulic Rock Hammer Maintenance
Water powered hydraulic rock breaker support can lessen mileage on the hardware. Satisfactory grease can safeguard the touchy moving parts in a stone hydraulic rock breaker. The following are a couple of tips to follow when you oil the pressure driven hydraulic rock breaker.



Our All Models Data

Item Unit DSB53 DSB68 DSB75 DSB85 DSB100 DSB135 DSB140 DSB150 DSB155 DSB165 DSB175 DSB180
Total Length
(WITH MOUNT CAP& TOOL)
SIDE TYPE mm 1,140 1,330 1,699 1,767 1,939 2,289 2,414 2,603 2,776 2,919 3,189 3,253
OPEN TYPE mm 1,372 1,641 1,719 2,160 2,339 2,719 3,030 2,904 3,119 3,359 3,617 3,753
BOX TYPE mm 1,400 1,658 1,741 2,200 2,400 2,766 3,075 3,075 3,250 3,450 3,711 3,760
Operation Weight
(WITH TOOL)
SIDE TYPE kg 137 281 398 618 845 1,605 1,812 2,530 2,752 3,189 4,055 4,586
OPEN TYPE kg 132 275 390 604 920 1,784 1,975 2,750 2,818 3,514 4,370 4,600
BOX TYPE kg 161 348 456 675 978 1,942 2,174 2,895 2,906 3,586 4,480 4,658
Operation Pressure kgf/cm2 90~120 110~140 120~150 130~160 140~170 160~180 160~180 160~180 160~180 160~180 160~200 180~220
psi

1,280~

1,706

1,564~

1,990

1,706~

2,133

1,706~

2,133

1,990~

2,417

2,275~

2,559

2,275~

2,559

2,275~

2,559

2,275~

2,559

2,275~

2,559

2,275~

2,559

2,559~

3,128

Oil Flow l/min 25~45 40~70 50~90 60~100 80~120 120~150 120~150 170~240 170~240 190~250 220~260 220~260
gpm 6.6~11.9 7.9~13.2 13.2~23.8 15.8~26.4 21.1~31.7 31.7~39.6 31.7~39.6 44.9~63.4 44.9~63.4 50.1~66.0 58.1~76.5 58.1~76.5
Impact Rate bpm 550~1000 450~950 400~900 400~800 450~630 350~500 250~400 380~480 320~450 280~370 240~320 210~300
Nitrogen bar 14-17 14-17 14-17 14-17 14-17 14-17 14-17 18-22 17-20 17-20 22-25 22-25
Chisel Diameter mm 53 68 75 85 100 135 140 150 155 165 175 185
inch 2.08 2.67 2.95 3.34 3.93 5.31 5.51 5.9 6.11 6.48 6.88 7.27
Chisel Length mm 550 700 750 850 1,000 1,200 1,200 1,300 1,400 1,400 1,500 1,600
Chisel Weight kg 9 18 29 32 57 121 137 170 193 227 272 320
Hose Size mm 13 13 13 19 19 25 25 25 32 32 32 32
inch PF1/2'' PF1/2'' PF1/2'' PF3/4'' PF3/4'' PF1'' PF1'' PF1'' PF1-1/4'' PF1-1/4'' PF1-1/4'' PF1-1/4''
Noise Level m 4/8 5/10 6/12 6/12 7/14 16-22 16-22 26-35 26-35 35-40 38-45 42-48
Suitable Exca ton 2.1~4.0 4.8~8.0 6.0~9.0 8.0~12.5 12~15 20~26 22~27 25-32 26~35 30~42 35~45 36~45
Impact Force j 355 560 790 1320 1980 3450 3720 5250 5750 7040 14800 17550



Item
Model DSB53(Open Type) Unit
Total Length 1699 mm
Operation Weight 398 mm
Operation Pressure 120~150 kgf/cm2
Oil Flow 50~90 l/min
Impact Rate 400~900 bpm
Nitrogen 14~17 bar
Chisel Diameter 75 mm
Chisel Length 750 mm
Chisel Weight 29 kg
Hose Size PF1/2'' inch
Noise Level 4-8 mm
Suitable Excavator 6.0~9.0 ton
Impact Force 790 j



Suitable Carrier Of Hydraulic Rock Breaker



EXCAVATOR
(Ton)
DSB53
2.1~4.0
DSB68
4.8~8.0
DSB75
6.0~9.0
DSB85
8.0~12.5
DSB100
12~15
DSB135
20~26
DSB140
22~27
DSB150
25-32
DSB155
26~35
DSB165
30~42
DSB175
35~45
DSB180
45-50
SANY SY35U SY55C
SY60C
SY65C
SY75C
SY85C
SY85C
SY95C
SY115C
SY135C
SY215C
SY225C
SY215
SY225
SY245
SY245
SY265
SY265C
SY285C
SY305C
SY305C
SY335H
SY365H
SY465H
SY485H
SY485H
XCMG XE35D XE55D
XE60D
XE75D
XE80D
XE85D XE135D
XE150D
XE200D
XE215D
XE215D XE270DK XE305D XE305D
XE370D
XE470D XE470E
LONGKING   6060
6065
6075
6085
6085 6150 6215 6215
6225
6235
6245
6285
6285
6365
6365 6490 6490
LIUGONG   906D 908D
909D
909D
910D
P10D
P15E
P16D
920E
922E
922E
925E
926E
926E
927E
933E 033E
936E
948E
950E
950E
CATERPILLAR 303-5E 305-5E
306E
307E
308E
308E 313D
318D
320D
323D
320D
323D
325D
325D
326D
326D
329C
330D
336D 339C
340D
340D
345D
349D
VOLVO EC30/25
EC35
ZL302
CE55     CE120
CE140
EC210 EC210
EC240
EC290 EC290 EC360 EC460 EC480
HITACHI EX25/27
EC30/33
EC34
UE30
ZX60
ZX60W
ZX60
ZX60W
  ZX100
ZX130W
ZX150
ZX100WD
ZX200
ZX210
ZX220
ZX270
ZX230
ZX240
ZX270
ZX280
ZX300
ZX300
ZX330
ZX350
ZX360
ZX400
ZX400 ZX400
ZX450
KOMATSU PC10
PC15
PC12
PC27
PC40
PC45
PC50
PC60
PC45
PC50
PC60
PC90
PC100
PC120
PC150
PW150
PC200
PC220
PW210
PC200
PC220
PC250
PC270
PC300
PC250
PC270
PC300
PC400 PC450 PC500
SUMITOMO   S25
S140
SH75
S180
S140
SH75
S160
S140
SH75
S160
S40
S70
SH120
SH200
S260
SH200
SH240
S260
S90
SH300
SH330
S340
S390
S100
S430
SH400
SH450
SH460
SH480
SH480
SH500
KATO   HD180
HD250
HD400
HD250
HD400
HD650 HD450
HD500
HD550
HD650
HD700
HD800
HD820
HD820-5
HD880
HD1023
HD1203
HD1100
HD1200
HD1023R
HD1430R
HD1638R   HD2048R
DOOSAN DH30
DSL602
SOLAR
30/035
DH55
DH60
SOLAR70 DH80W DH130
DH130W
DH150
DH170
DH220
DH225
DH225
DH258
DH300
SOLAR280/
290/320/330
DH300 DH360
DH420
DH500
DH450
DH500

HYUNDAI R35 RB55-7
RB60-7
    RB130-7
RB175
RB200
RB210
R215
R220
R205-7
R255
R260
R290
R290
R360
R420
R420
R450
R450
R455
R450
R455
R485
LIEBHERR     L506/507/508
509/512/514
A308 A900
A314
A316 A/R904/912
914/921/
932/941
R924 R934 R944
R954
R964
R974


Latest Version of Carrier List Please Contact With Us or Confirm With Us Before Placing Orders.



Other Details

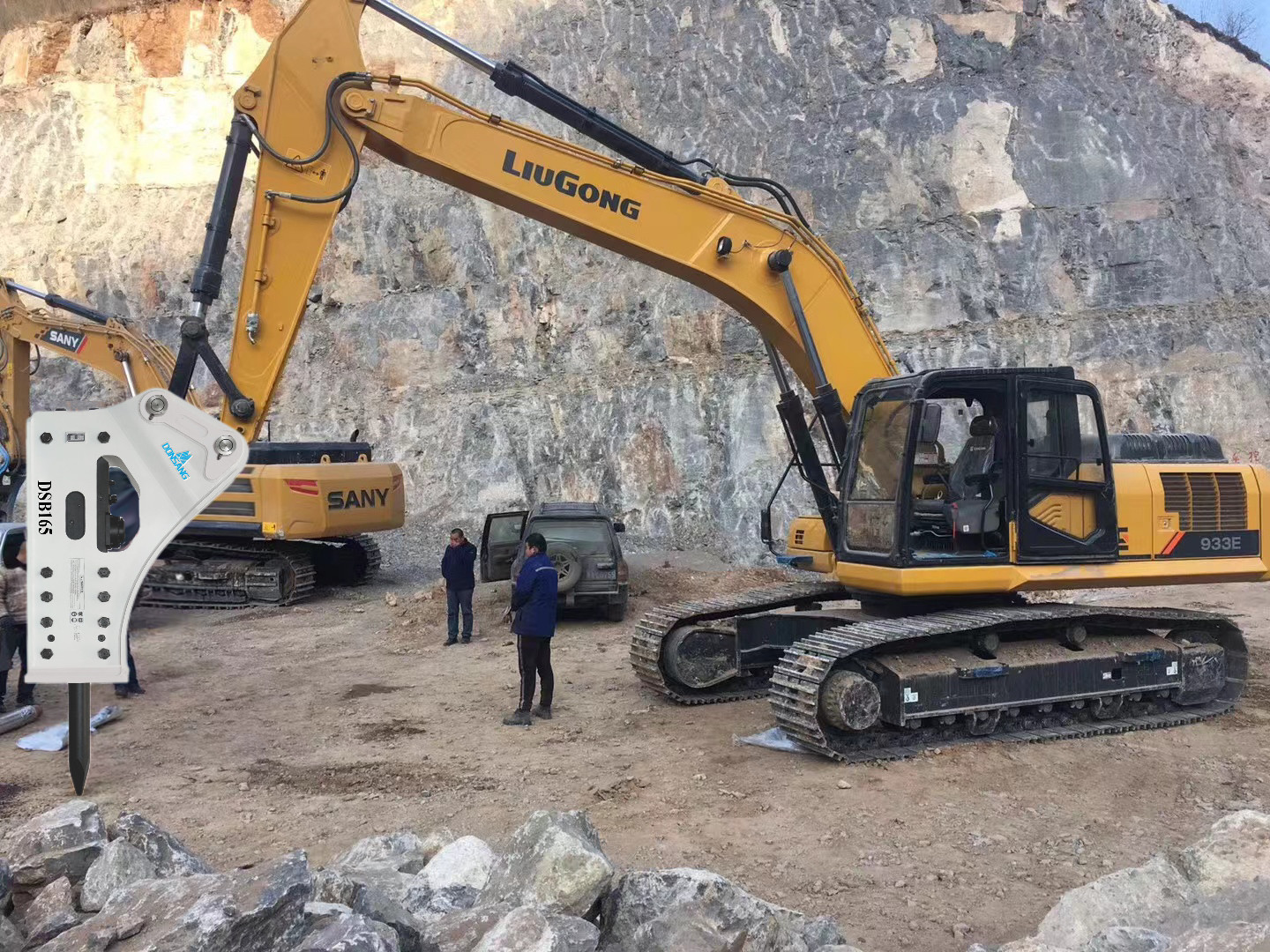

Some Picture of Hydraulic Rock Breaker

Banana Type Excavator Hydraulic Rock Breaker With 75mm Chisel 0Banana Type Excavator Hydraulic Rock Breaker With 75mm Chisel 1

Banana Type Excavator Hydraulic Rock Breaker With 75mm Chisel 2



Pay Attention When Using Hydaulic Rock Breaker

Banana Type Excavator Hydraulic Rock Breaker With 75mm Chisel 3

Banana Type Excavator Hydraulic Rock Breaker With 75mm Chisel 4Banana Type Excavator Hydraulic Rock Breaker With 75mm Chisel 5Banana Type Excavator Hydraulic Rock Breaker With 75mm Chisel 6Banana Type Excavator Hydraulic Rock Breaker With 75mm Chisel 7Banana Type Excavator Hydraulic Rock Breaker With 75mm Chisel 8
