Place of Origin: | CHINA |
---|---|
Brand Name: | DONSANG |
Certification: | CE ISO9001 |
Model Number: | DS20HP |
Minimum Order Quantity: | Negotiable |
Price: | Negotiable |
Packaging Details: | WOODEN CASE |
Delivery Time: | 15 WORKING DAYS |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 100 Pcs Per Months |
Operating Weight: | 1480kg | Operating Pressure: | 32mpa |
---|---|---|---|
Oil Flow: | 180-250l/min | Crushing Force: | 875kn |
Cutter Length: | 180mm | Max Open: | 860mm |
Highlight: | 20 Tonne Hydraulic Pulverizer,Hydraulic Concrete Pulverizer For Excavator,Excavator Hydraulic Pulverizer |

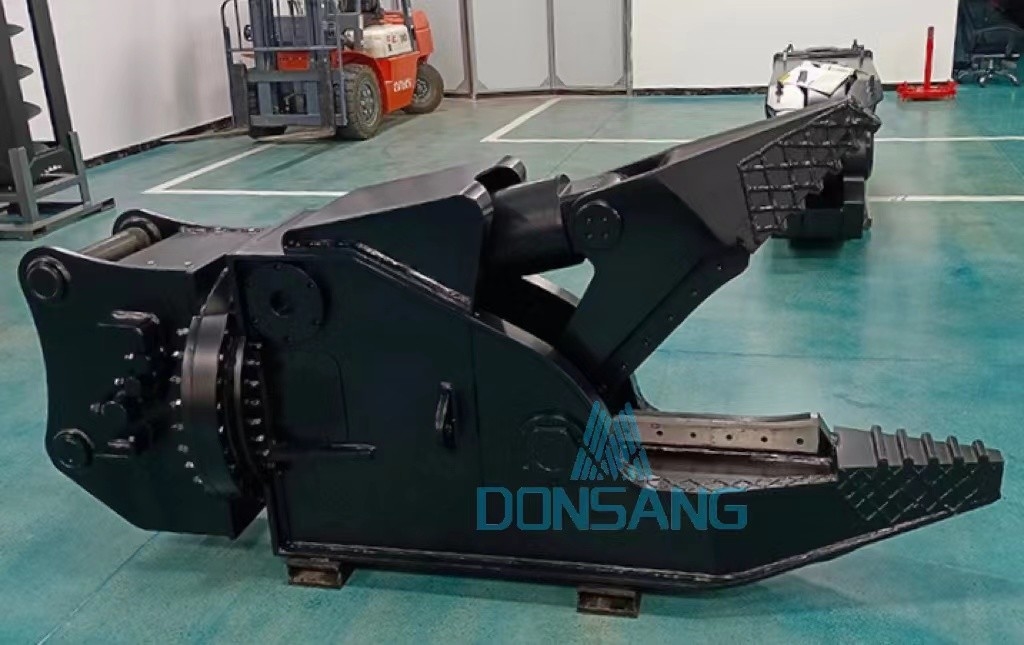

360 Degree Rotation Hydraulic Pulverizer For Building Demolition Bar Cutting Loading

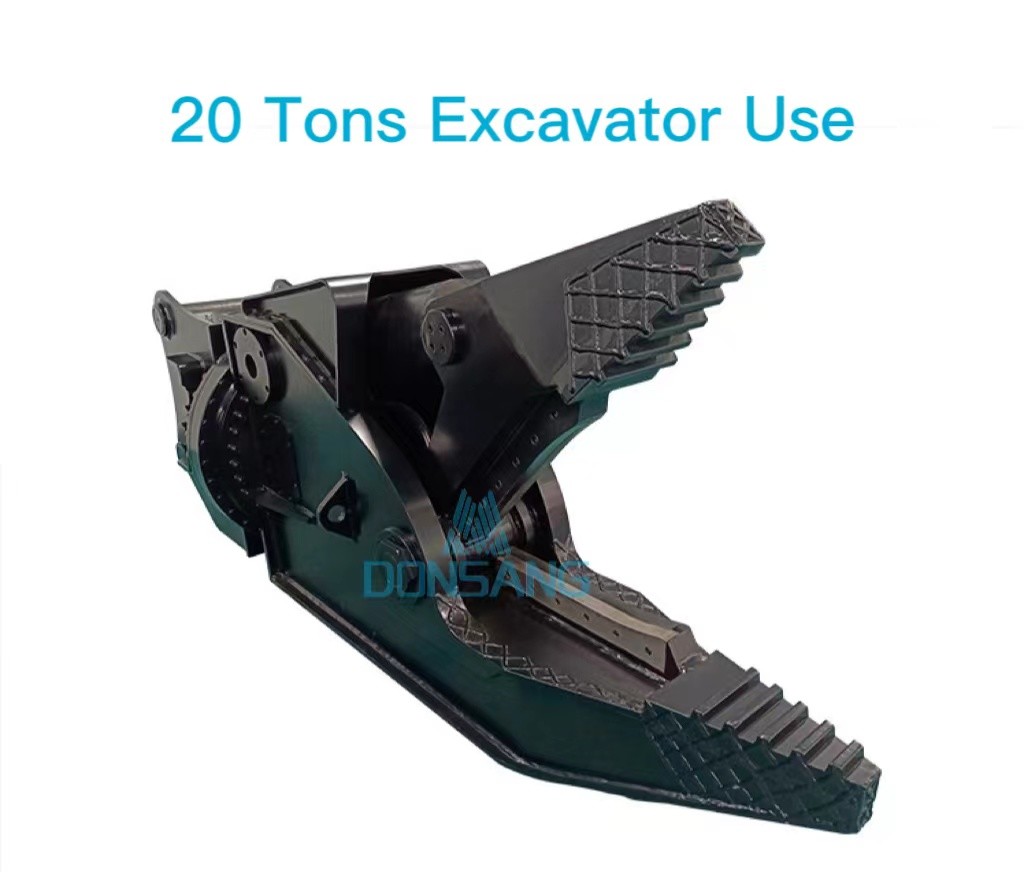

360 Degree Rotation Hydraulic Pulverizer For 20 Tons Ecavator Use In Building Demolition Bar Cutting Loading
Hydraulic Pulverizer DS20HP Details
Item | Unit | DS20HP |
Operating Weight | kg | 1480 |
Operating Pressure | mpa | 32 |
Oil Flow | l/min | 180-250 |
Crushing Force | kn | 875 |
Cutter Length | mm | 180 |
Max Open | mm | 860 |
Applicable Excavator | ton | 16-22 |
The all Hydraulic Pulverizer Models We Can Make
Item | Unit | DS10HP | DS20HP | DS30HP | DS30HP-C | DS40HP |
Operating Weight | kg | 1090 | 1480 | 1600 | 1980 | 2200 |
Operating Pressure | mpa | 28 | 32 | 32 | 32 | 32 |
Oil Flow | l/min | 120-180 | 180-250 | 180-250 | 180-250 | 200-300 |
Crushing Force | kn | 750 | 875 | 990 | 990 | 1700 |
Cutter Length | mm | 180 | 180 | 180 | 180 | 360 |
Max Open | mm | 720 | 860 | 860 | 900 | 1100 |
Applicable Excavator | ton | 10-15 | 16-22 | 20-30 | 20-30 | 30-40 |
Concrete Cutter Pulverizer Other Details
Hydraulic Pulverizer Production Process:
