| Place of Origin: | ＣHINA |
|---|---|
| Brand Name: | DONSANG |
| Certification: | CE，ISO |
| Model Number: | DS20T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Wooden Box |
| Delivery Time: | 15 - 20 Working Days |
| Payment Terms: | Negotiable |
| Supply Ability: | 15 Sets Per Mothn |
| Eccentric Moment: | 48 NM | Warranty: | 1 Year |
|---|---|---|---|
| Vibration Frequency: | 2800 RPM | Color: | Bule , Black , White , Customize |
| Operating Pressure: | 300 BAR | Suitable Excavator: | 20-30 Tons |
| Type: | Hydraulic Pile Hammer | Weigth: | 2400 KG |
| Highlight: | 2800RPM Hydraulic Hammer Pile Driver,Excavator Hydraulic Hammer Pile Driver |
||
Donsang Machinery Co.,Ltd was found in 2012, located in Suzhou, a beautiful garden city which is nearby the several sea port like Shanghai ,Ningbo, Taicang. Over the decades of effort by the group, the branch offices was established now in UAE and North America.
The company its serviced the hydraulic breaker as the start and now covered all kinds of excavator attachments for the mining ,construction, recycling, tunnel , underwater , farming, army work etc., industries. From the small carrier like BOBCAT to the giant machine like the mining excavators of different brads.
6S management of the factory, fully certificated of the products, with those high standard quality product ,the efficient team work and reasonable price terms that there are more than 43 countries valued clients are having the long-term relationship.
Donsang Machinery Co.,Ltd wish to provide more valuable concept and actions to our partners so that your every words or questions are important for us.

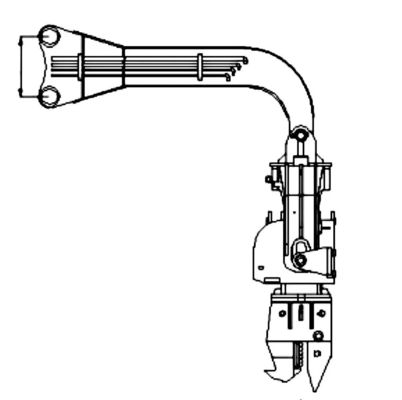

The Hydraulic Pile Hammer is mainly installed and used on excavators, including land based excavators and amphibious excavators. Excavator pile drivers are mainly used for driving piles, including pipe piles, steel sheet piles, steel pipe piles, precast concrete piles, wooden piles, and photovoltaic piles driven on water.
| Hydraulic Pile Hammer | |||||
| Model | Unit | DS20T | DS30T | DS35T | DS40T |
| Eccentric Moment | NM | 48 | 52 | 65 | 85 |
| Vibration Frequency | RPM | 2800 | 2800 | 2800 | 2800 |
| Operating Pressure | BAR | 300 | 320 | 320 | 320 |
| Oil Flow | L/min | 155 | 210 | 210 | 255 |
| Weigth | KG | 2400 | 3300 | 3650 | 3750 |
| Suitable Excavator | TON | 20-30 | 30-40 | 38-45 | 40-50 |
| Property | Value |
|---|---|
| Name | Hydraulic Pile Hammer |
| Color | Blue, Black, White, Customize |
| Vibration Frequency | 2800 RPM |
| Operating Pressure | 300 BAR |
| Eccentric Moment | 48 NM |
| Weight | 2400 KG |
| Suitable Excavator | 20-300 |
| Oil Flow | 155 L/Min |
| Magnet (Optional) | Customize |
| Warranty | 1 Year |
The hydraulic pile hammer utilizes its high-frequency vibration to vibrate the pile body with high acceleration, transmitting the vertical vibration generated by the machinery to the pile body, causing changes in the soil structure around the pile and a decrease in strength due to vibration. The soil around the pile body liquefies, reducing the frictional resistance between the pile side and the soil. Then, the pile is sunk into the soil using the downward pressure of the excavator, the vibration sinker, and the self weight of the pile body. When pulling out the pile, use the lifting force of the excavator to lift the pile while vibrating on one side. The excitation force required for pile driving machinery should be comprehensive based on the soil layer, soil quality, water content, and the type and structure of the pile on the site
-Wide range: In addition to not being able to enter the rock, high-frequency hydraulic pile drivers are almost suitable for construction under any harsh geological conditions, and can easily penetrate geological layers such as pebble and sand layers.
-High efficiency: The speed of vibration pile sinking and extraction is generally 4-7 meters/minute, with a maximum speed of 12 meters/minute (in non muddy soil). The construction speed is much faster than other pile driving machinery, and the efficiency is 40% -100% higher than that of pneumatic hammers and diesel hammers.
-Multi functional: In addition to being used for the construction of various load-bearing piles, high-frequency hydraulic pile drivers can also construct thin-walled anti-seepage walls, deep compaction treatment, ground compaction treatment, and other special constructions.
-Environmental protection: Low vibration and noise during work, high-frequency hydraulic pile driver, equipped with noise reduction power box, can fully meet environmental requirements during construction in urban areas.
Operating principle:
1. The hydraulic pile hammer is equipped with two eccentric shafts, which are driven by hydraulic motors to generate high-speed rotation and vertical excitation force. After passing through the damping rubber block, it maintains a certain amplitude and can meet various types of soil and pile driving requirements.
2. The excitation force is proportional to the size of the eccentric shaft and the square of the number of vibrations. The eccentric shaft has undergone detailed calculation and testing, which can balance the strong excitation force and material characteristics, not only meeting work needs, but also ensuring mechanical reliability.
Matters Needing Attention:
1. The operator of the hydraulic pile hammer must be familiar with the equipment's structure, performance, and operating essentials.
2. Strictly follow the instructions for proper maintenance.
3. When the hydraulic pile hammer is working, all personnel should check the operation signals with each other in advance.
4. Before working on the hydraulic pile hammer, other unrelated personnel must stay away from the site
