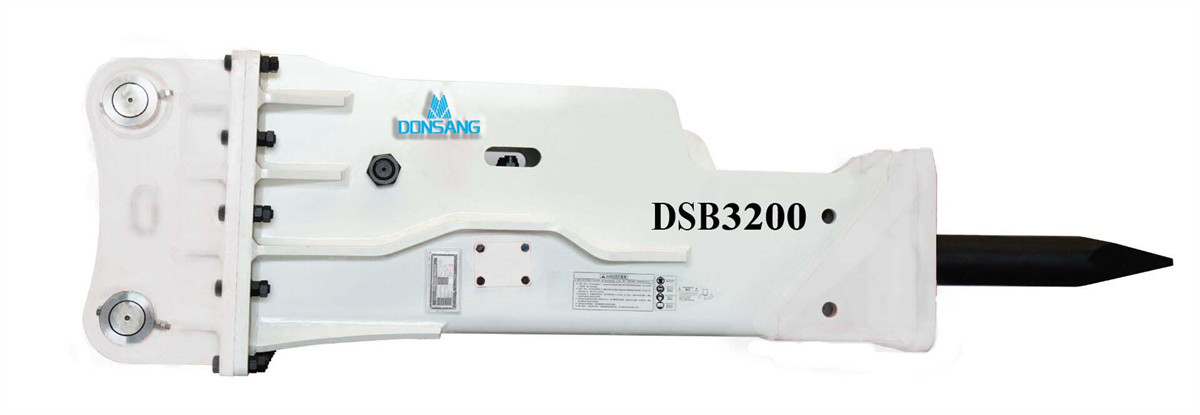

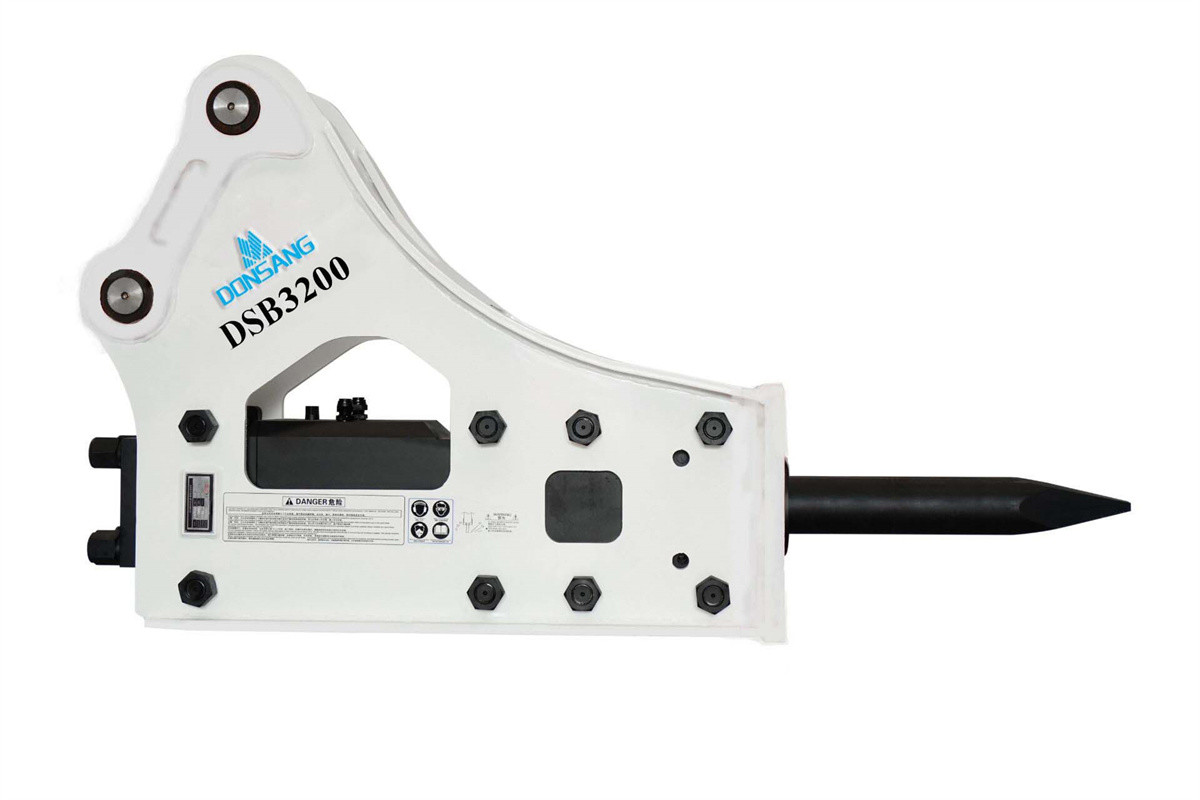

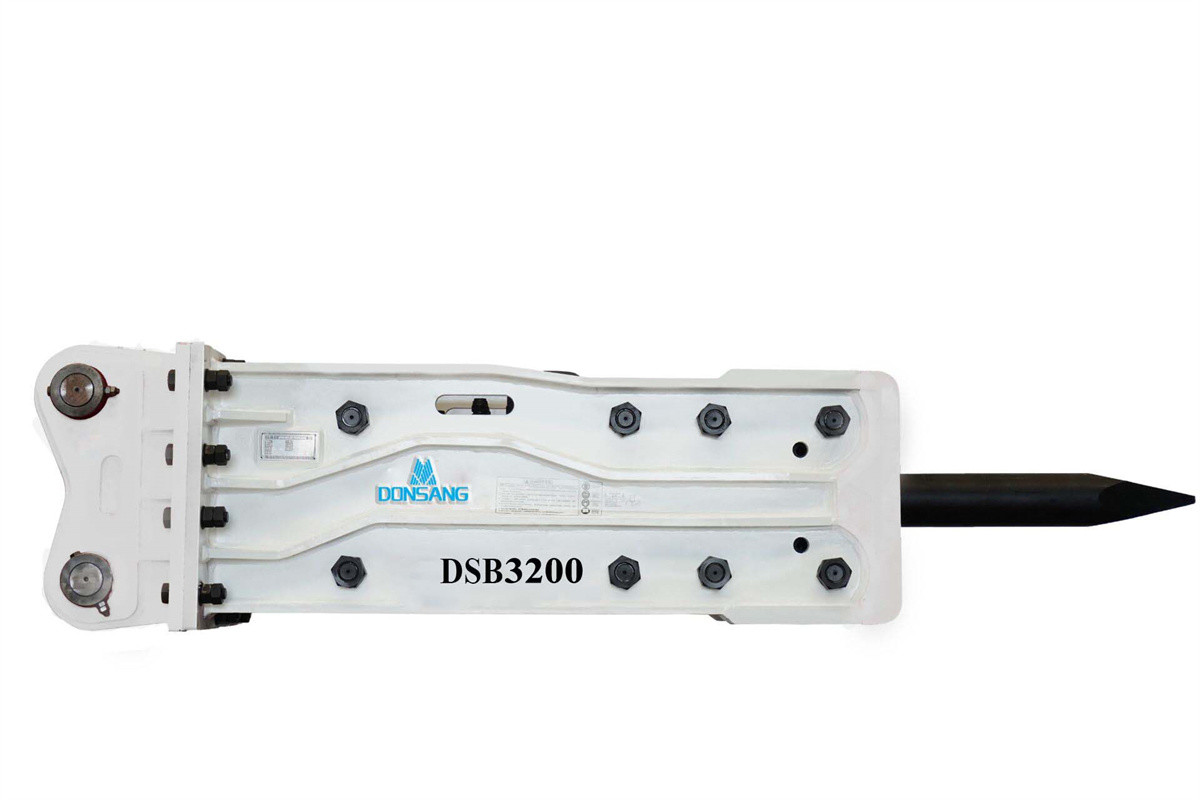

Excavator Attachments Hydraulic Breaker 155mm Wide Chisel Hydraulic Rock Hammer For 28 Ton 35 Ton Big Excavator

Excavator Attachments Hydraulic Breaker 155mm Wide Chisel Hydraulic Rock Hammer For 28 Ton 35 Ton Big Excavator
Excavator Attachments Hydraulic Breaker 155mm Wide Chisel Hydraulic Rock Hammer For 28 Ton 35 Ton Big Excavator
Excavator Attachments Hydraulic Breaker 155mm Wide Chisel Hydraulic Rock Hammer For 28 Ton 35 Ton Big Excavator Excavator Attachments Hydraulic Breaker 155mm Wide Chisel Hydraulic Rock Hammer For 28 Ton 35 Ton Big Excavator Excavator Attachments Hydraulic Breaker 155mm Wide Chisel Hydraulic Rock Hammer For 28 Ton 35 Ton Big Excavator
Basic Information
Place of Origin: China
Brand Name: DONSANG
Certification: CE,ISO9001
Model Number: DSB3200
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Wooden Box
Delivery Time: 20 Working Days
Payment Terms: Negatiable
Supply Ability: 100 Set Per Month
Contact Now
Model: Open Type.Side Type,Box Type Operation Pressure: 200~220 Kgf/cm2
Oil Flow: 170~240 L/min Impact Rate: 200~300 Bpm
Nitrogen: 16~18 Bar Chisel Diameter: 155 Mm
Chisel Weight: 121 Kg Hose Size: PF1-1/4'' Inch
Noise Level: 16-22 M Suitable Excavator: 28~35 Ton
Impact Force: 5750 J Total Length: 2719 Mm

Hydraulic Breaker Factory Produce150mm Wide Chisel Hydraulic Rock Hammer HB30G SB81 For 28 Ton 35 Ton Big Excavator

DONSNAG MACHINE-Good quality, good price, good service.



Our All Models Data



Mini Carrier                                                                                                                                           Large Carrier
Item Unit DONSANG100 DONSANG300    ltem Unit DONSANG2000 DONSANG2200 DONSANG3000 DONSANG3200
Total Length Side mm 1,000 1,140   Total Length Side mm 2,300 2,414 2,603 2,776
Top mm 1,275 1,440   Top mm 2,870 2,920 2,904 3,330
Box mm 1,372 1,520   Box mm 2,895 3,075 3,075 3,350
Operation Weight Side kg 145 148   Operation Weight Side kg 1.628 1,820 2,530 2,586
Top kg 140 152   Top kg 1,784 1,975 2,750 2,818
Box kg 170 176   Box kg 1,942 2,174 2,895 2,906
Working Pressure kg/cm³ 90-120 90-120   Working Pressure kg/cm³ 160-180 160-180 180-200 200-220
Required Oil Flow l/min 25-32 25-45   Required Oil Flow l/min 120-150 120-180 130-190 170-240
Impact Rate bpm 600-1200 550-1000   Impact Rate bpm 350-500 350-500 200-300 200-300
Nitrogen bar 14-17 14-17   Nitrogen bar 14-12 14-17 6-8 16-18
Chisel Diameter mm 45 53   Chisel Diameter mm 135 140 150 155
Hose Size inch PF1/2" PF1/2"   Hose Size inch PF1" PF1" PF1" PF1-1/4"
Applicable Excavator ton 1.2-2.2 2.1-4.0   Applicable Excavator ton 20-26 22-27 28-32 28-35
Max Pressure j 260 355   Max Pressure j 3459 3721 5250 5750
Piston Stroke mm 46 48   PistonStroke mm 92 105 108 115
Medium Carrier                                                                                                                           Mining Construction
Item Unit DONSANG600 DONSANG800 DONSANG1000 DONSANG1400   Item Unit DONSANG4000 DONSANG4500 DONSANG5200
Total Length Side mm 1,330 1,699 1,767 1,939   Total Length Side mm 2919 3189 3253
Top mm 1,641 1,890 2,160 2,339   Top mm 3580 3980 4030
Box mm 1,658 1,920 2,200 2,400   Box mm 3610 4038 4080
Operation Weight Side kg 281 474 618 826   Operation Weight Side kg 3052 4168 4753
Top kg 282 494 604 920   Top kg 3514 4370 4842
Box kg 348 504 675 978   Box kg 3586 4480 4946
Working Pressure kg/cm³ 110-140 120-150 130-160 140-170   Working Pressure kg/cm³ 200-240 240-280 240-280
Required OilFlow l/min 40-70 50-90 60-100 80-120   Required Oil Flow l/min 190-250 220-260 220-260
Impact Rate bpm 450-950 400-800 400-800 400-630   Impact Rate bpm 150-350 150-300 130-260
Nitrogen bar 14-17 14-17 14-17 14-17   Nitrogen bar 18-22 24-28 25-28
Chisel Diameter mm 68 75 85 100   Chisel Diameter mm 165 175 185
Hose Size inch PF1/2" PF1/2" PF3/4" PF3/4"   Hose Size inch PF1-1/4" PF1-1/4" PF1-1/4"
Applicable Excavator ton 4.8-8.0 6.0-9.0 8.0-12.5 12-15   Applicable Excavator ton 30-42 35-45 46-56
Max Pressure j 560 790 1326 1980   Max Pressure j 7048 14825 17556
Piston Stroke mm 60 72 77 87   Piston Stroke mm 124 158 170






Suitable Carrier Of Excavator Hydraulic Breaker



EXCAVATOR
(Ton)		 DSB53
2.1~4.0		 DSB68
4.8~8.0		 DSB75
6.0~9.0		 DSB85
8.0~12.5		 DSB100
12~15		 DSB135
20~26		 DSB140
22~27		 DSB150
25-32		 DSB155
26~35		 DSB165
30~42		 DSB175
35~45		 DSB180
45-50
SANY SY35U SY55C
SY60C
SY65C		 SY75C
SY85C		 SY85C
SY95C		 SY115C
SY135C		 SY215C
SY225C		 SY215
SY225
SY245		 SY245
SY265		 SY265C
SY285C
SY305C		 SY305C
SY335H
SY365H		 SY465H
SY485H		 SY485H
XCMG XE35D XE55D
XE60D		 XE75D
XE80D		 XE85D XE135D
XE150D		 XE200D
XE215D		 XE215D XE270DK XE305D XE305D
XE370D		 XE470D XE470E
LONGKING   6060
6065		 6075
6085		 6085 6150 6215 6215
6225
6235		 6245
6285		 6285
6365		 6365 6490 6490
LIUGONG   906D 908D
909D		 909D
910D		 P10D
P15E
P16D		 920E
922E		 922E
925E
926E		 926E
927E		 933E 033E
936E		 948E
950E		 950E
CATERPILLAR 303-5E 305-5E
306E		 307E
308E		 308E 313D
318D		 320D
323D		 320D
323D
325D		 325D
326D		 326D
329C
330D		 336D 339C
340D		 340D
345D
349D
VOLVO EC30/25
EC35
ZL302		 CE55     CE120
CE140		 EC210 EC210
EC240		 EC290 EC290 EC360 EC460 EC480
HITACHI EX25/27
EC30/33
EC34
UE30		 ZX60
ZX60W		 ZX60
ZX60W		   ZX100
ZX130W
ZX150
ZX100WD		 ZX200
ZX210
ZX220
ZX270		 ZX230
ZX240
ZX270		 ZX280
ZX300		 ZX300
ZX330
ZX350		 ZX360
ZX400		 ZX400 ZX400
ZX450
KOMATSU PC10
PC15
PC12
PC27		 PC40
PC45
PC50
PC60		 PC45
PC50
PC60		 PC90
PC100		 PC120
PC150
PW150		 PC200
PC220
PW210		 PC200
PC220		 PC250
PC270
PC300		 PC250
PC270
PC300		 PC400 PC450 PC500
SUMITOMO   S25
S140
SH75
S180		 S140
SH75
S160		 S140
SH75
S160		 S40
S70
SH120		 SH200
S260		 SH200
SH240
S260		 S90
SH300
SH330		 S340
S390		 S100
S430
SH400
SH450		 SH460
SH480		 SH480
SH500
KATO   HD180
HD250
HD400		 HD250
HD400		 HD650 HD450
HD500
HD550
HD650		 HD700
HD800
HD820		 HD820-5
HD880
HD1023		 HD1203
HD1100
HD1200		 HD1023R
HD1430R		 HD1638R   HD2048R
DOOSAN DH30
DSL602
SOLAR
30/035		 DH55
DH60		 SOLAR70 DH80W DH130
DH130W
DH150
DH170		 DH220
DH225		 DH225
DH258		 DH300
SOLAR280/
290/320/330		 DH300 DH360
DH420
DH500		 DH450
DH500
HYUNDAI R35 RB55-7
RB60-7		     RB130-7
RB175		 RB200
RB210
R215		 R220
R205-7
R255		 R260
R290		 R290
R360
R420		 R420
R450		 R450
R455		 R450
R455
R485
LIEBHERR     L506/507/508
509/512/514		 A308 A900
A314		 A316 A/R904/912
914/921/
932/941		 R924 R934 R944
R954		 R964
R974


Latest Version of Carrier List Please Contact With Us or Confirm With Us Before Placing Orders.
