| Place of Origin: | China |
|---|---|
| Brand Name: | DONSANG |
| Certification: | CE,ISO9001 |
| Model Number: | DSB135 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Standard Wooden Box |
| Delivery Time: | 20 Working Days |
| Payment Terms: | Negatiable |
| Supply Ability: | 100 Set Per Month |
| Model: | Box Type | Operation Pressure: | 160~180 Kgf/cm2 |
|---|---|---|---|
| Oil Flow: | 120~150 L/min | Impact Rate: | 350~500 Bpm |
| Nitrogen: | 6~8 Bar | Chisel Diameter: | 135 Mm |
| Chisel Length: | 1250 Mm | Chisel Weight: | 121 Kg |
| Hose Size: | PF1'' Inch | Noise Level: | 16-22 M |
| Suitable Excavator: | 20~26 Ton | Impact Force: | 3450 J |
| Total Length: | 2766 Mm | Operation Weight: | 1942 Mm |
| Color: | White ，Blue , Customized | Type: | Box , Open , Side |
| Highlight: | 26 ton Excavator Hydraulic Breaker,135mm Wide Chisel Excavator Hydraulic Breaker |
||
About Us:
Donsang Machinery Co.,Ltd was found in 2012, located in Suzhou, a beautiful garden city which is nearby the several sea port like Shanghai ,Ningbo, Taicang. Over the decades of effort by the group, the branch offices was established now in UAE and North America.
The company its serviced the hydraulic breaker as the start and now covered all kinds of excavator attachments for the mining ,construction, recycling, tunnel , underwater , farming, army work etc., industries. From the small carrier like BOBCAT to the giant machine like the mining excavators of different brads.
6S management of the factory, fully certificated of the products, with those high standard quality product ,the efficient team work and reasonable price terms that there are more than 43 countries valued clients are having the long-term relationship.
Donsang Machinery Co.,Ltd wish to provide more valuable concept and actions to our partners so that your every words or questions are important for us.
Our All Models Data
| Item | Unit | DSB53 | DSB68 | DSB75 | DSB85 | DSB100 | DSB135 | DSB140 | DSB150 | DSB155 | DSB165 | DSB175 | DSB180 | |
| Total Length (WITH MOUNT CAP& TOOL) |
SIDE TYPE | mm | 1,140 | 1,330 | 1,699 | 1,767 | 1,939 | 2,289 | 2,414 | 2,603 | 2,776 | 2,919 | 3,189 | 3,253 |
| OPEN TYPE | mm | 1,372 | 1,641 | 1,719 | 2,160 | 2,339 | 2,719 | 3,030 | 2,904 | 3,119 | 3,359 | 3,617 | 3,753 | |
| BOX TYPE | mm | 1,400 | 1,658 | 1,741 | 2,200 | 2,400 | 2,766 | 3,075 | 3,075 | 3,250 | 3,450 | 3,711 | 3,760 | |
| Operation Weight (WITH TOOL) |
SIDE TYPE | kg | 137 | 281 | 398 | 618 | 845 | 1,605 | 1,812 | 2,530 | 2,752 | 3,189 | 4,055 | 4,586 |
| OPEN TYPE | kg | 132 | 275 | 390 | 604 | 920 | 1,784 | 1,975 | 2,750 | 2,818 | 3,514 | 4,370 | 4,600 | |
| BOX TYPE | kg | 161 | 348 | 456 | 675 | 978 | 1,942 | 2,174 | 2,895 | 2,906 | 3,586 | 4,480 | 4,658 | |
| Operation Pressure | kgf/cm2 | 90~120 | 110~140 | 120~150 | 130~160 | 140~170 | 160~180 | 160~180 | 160~180 | 160~180 | 160~180 | 160~200 | 180~220 | |
| psi | 1,280~1,706 | 1,564~1,990 | 1,706~2,133 | 1,706~2,133 | 1,990~2,417 | 2,275~2,559 | 2,275~2,559 | 2,275~2,559 | 2,275~2,559 | 2,275~2,559 | 2,275~2,559 | 2,559~3,128 | ||
| Oil Flow | l/min | 25~45 | 40~70 | 50~90 | 60~100 | 80~120 | 120~150 | 120~150 | 170~240 | 170~240 | 190~250 | 220~260 | 220~260 | |
| gpm | 6.6~11.9 | 7.9~13.2 | 13.2~23.8 | 15.8~26.4 | 21.1~31.7 | 31.7~39.6 | 31.7~39.6 | 44.9~63.4 | 44.9~63.4 | 50.1~66.0 | 58.1~76.5 | 58.1~76.5 | ||
| Impact Rate | bpm | 550~1000 | 450~950 | 400~900 | 400~800 | 450~630 | 350~500 | 250~400 | 380~480 | 320~450 | 280~370 | 240~320 | 210~300 | |
| Nitrogen | bar | 14-17 | 14-17 | 14-17 | 14-17 | 14-17 | 14-17 | 14-17 | 18-22 | 17-20 | 17-20 | 22-25 | 22-25 | |
| Chisel Diameter | mm | 53 | 68 | 75 | 85 | 100 | 135 | 140 | 150 | 155 | 165 | 175 | 185 | |
| inch | 2.08 | 2.67 | 2.95 | 3.34 | 3.93 | 5.31 | 5.51 | 5.9 | 6.11 | 6.48 | 6.88 | 7.27 | ||
| Chisel Length | mm | 550 | 700 | 750 | 850 | 1,000 | 1,200 | 1,200 | 1,300 | 1,400 | 1,400 | 1,500 | 1,600 | |
| Chisel Weight | kg | 9 | 18 | 29 | 32 | 57 | 121 | 137 | 170 | 193 | 227 | 272 | 320 | |
| Hose Size | mm | 13 | 13 | 13 | 19 | 19 | 25 | 25 | 25 | 32 | 32 | 32 | 32 | |
| inch | PF1/2'' | PF1/2'' | PF1/2'' | PF3/4'' | PF3/4'' | PF1'' | PF1'' | PF1'' | PF1-1/4'' | PF1-1/4'' | PF1-1/4'' | PF1-1/4'' | ||
| Noise Level | m | 4/8 | 5/10 | 6/12 | 6/12 | 7/14 | 16-22 | 16-22 | 26-35 | 26-35 | 35-40 | 38-45 | 42-48 | |
| Suitable Exca | ton | 2.1~4.0 | 4.8~8.0 | 6.0~9.0 | 8.0~12.5 | 12~15 | 20~26 | 22~27 | 25-32 | 26~35 | 30~42 | 35~45 | 45~50 | |
| Impact Force | j | 355 | 560 | 790 | 1320 | 1980 | 3450 | 3720 | 5250 | 5750 | 7040 | 14800 | 17550 | |
| Item | ||
| Model | DSB135(Box Type) | Unit |
| Total Length | 2766 | mm |
| Operation Weight | 1942 | mm |
| Operation Pressure | 160~180 | kgf/cm2 |
| Oil Flow | 120~150 | l/min |
| Impact Rate | 350~500 | bpm |
| Nitrogen | 6~8 | bar |
| Chisel Diameter | 135 | mm |
| Chisel Length | 1250 | mm |
| Chisel Weight | 121 | kg |
| Hose Size | PF1'' | inch |
| Noise Level | 16~22 | mm |
| Suitable Excavator | 20~26 | ton |
| Impact Force | 3450 | j |
Suitable Carrier Of Hydraulic Hammer Breaker
| EXCAVATOR (Ton) |
DSB53 2.1~4.0 |
DSB68 4.8~8.0 |
DSB75 6.0~9.0 |
DSB85 8.0~12.5 |
DSB100 12~15 |
DSB135 20~26 |
DSB140 22~27 |
DSB150 25-32 |
DSB155 26~35 |
DSB165 30~42 |
DSB175 35~45 |
DSB180 45-50 |
| SANY | SY35U | SY55C SY60C SY65C |
SY75C SY85C |
SY85C SY95C |
SY115C SY135C |
SY215C SY225C |
SY215 SY225 SY245 |
SY245 SY265 |
SY265C SY285C SY305C |
SY305C SY335H SY365H |
SY465H SY485H |
SY485H |
| XCMG | XE35D | XE55D XE60D |
XE75D XE80D |
XE85D | XE135D XE150D |
XE200D XE215D |
XE215D | XE270DK | XE305D | XE305D XE370D |
XE470D | XE470E |
| LONGKING | 6060 6065 |
6075 6085 |
6085 | 6150 | 6215 | 6215 6225 6235 |
6245 6285 |
6285 6365 |
6365 | 6490 | 6490 | |
| LIUGONG | 906D | 908D 909D |
909D 910D |
P10D P15E P16D |
920E 922E |
922E 925E 926E |
926E 927E |
933E | 033E 936E |
948E 950E |
950E | |
| CATERPILLAR | 303-5E | 305-5E 306E |
307E 308E |
308E | 313D 318D |
320D 323D |
320D 323D 325D |
325D 326D |
326D 329C 330D |
336D | 339C 340D |
340D 345D 349D |
| VOLVO | EC30/25 EC35 ZL302 |
CE55 | CE120 CE140 |
EC210 | EC210 EC240 |
EC290 | EC290 | EC360 | EC460 | EC480 | ||
| HITACHI | EX25/27 EC30/33 EC34 UE30 |
ZX60 ZX60W |
ZX60 ZX60W |
ZX100 ZX130W ZX150 ZX100WD |
ZX200 ZX210 ZX220 ZX270 |
ZX230 ZX240 ZX270 |
ZX280 ZX300 |
ZX300 ZX330 ZX350 |
ZX360 ZX400 |
ZX400 | ZX400 ZX450 |
|
| KOMATSU | PC10 PC15 PC12 PC27 |
PC40 PC45 PC50 PC60 |
PC45 PC50 PC60 |
PC90 PC100 |
PC120 PC150 PW150 |
PC200 PC220 PW210 |
PC200 PC220 |
PC250 PC270 PC300 |
PC250 PC270 PC300 |
PC400 | PC450 | PC500 |
| SUMITOMO | S25 S140 SH75 S180 |
S140 SH75 S160 |
S140 SH75 S160 |
S40 S70 SH120 |
SH200 S260 |
SH200 SH240 S260 |
S90 SH300 SH330 |
S340 S390 |
S100 S430 SH400 SH450 |
SH460 SH480 |
SH480 SH500 |
|
| KATO | HD180 HD250 HD400 |
HD250 HD400 |
HD650 | HD450 HD500 HD550 HD650 |
HD700 HD800 HD820 |
HD820-5 HD880 HD1023 |
HD1203 HD1100 HD1200 |
HD1023R HD1430R |
HD1638R | HD2048R | ||
| DOOSAN | DH30 DSL602 SOLAR 30/035 |
DH55 DH60 |
SOLAR70 | DH80W | DH130 DH130W DH150 DH170 |
DH220 DH225 |
DH225 DH258 |
DH300 SOLAR280/ 290/320/330 |
DH300 | DH360 DH420 DH500 |
DH450 DH500 |
|
| HYUNDAI | R35 | RB55-7 RB60-7 |
RB130-7 RB175 |
RB200 RB210 R215 |
R220 R205-7 R255 |
R260 R290 |
R290 R360 R420 |
R420 R450 |
R450 R455 |
R450 R455 R485 |
||
| LIEBHERR | L506/507/508 509/512/514 |
A308 | A900 A314 |
A316 | A/R904/912 914/921/ 932/941 |
R924 | R934 | R944 R954 |
R964 R974 |
|
Latest Version of Carrier List Please Contact With Us or Confirm With Us Before Placing Orders.
Other Details

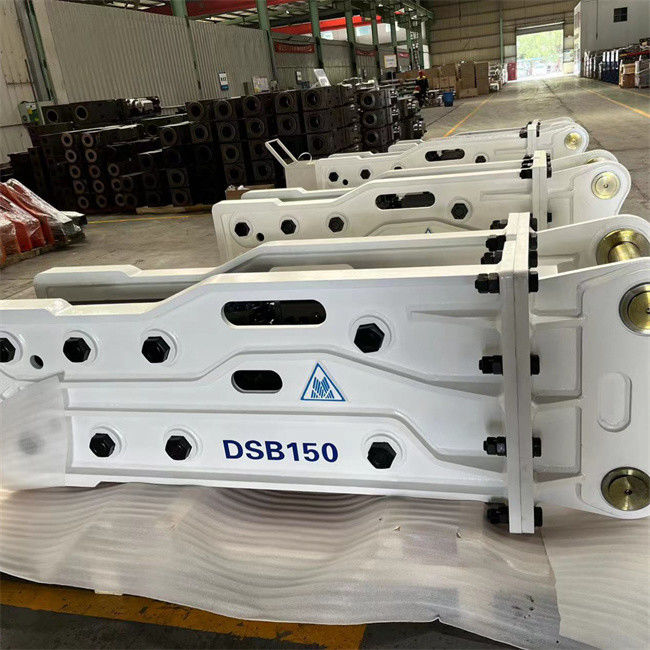

Some Picture of Hydraulic Hammer Breaker
We offer comprehensive technical support and services for the Excavator Crusher Bucket. Our experienced team of engineers can help you with installation, setup, maintenance and troubleshooting. They can also provide technical advice and assistance for the operation and use of the product.
We are committed to providing our customers with the best possible technical support and services. Our team is available 24 hours a day, 7 days a week to answer any questions you may have. We also offer regular product updates and upgrades to ensure your product remains up to date and fully functioning.
If you ever experience any issues with the Excavator Crusher Bucket, our team of experts is here to help. We offer on-site repairs and maintenance to help you get the most out of your product.
