Material: | 42 CrMo | Model: | HB20G , All Popular Models |
---|---|---|---|
Design: | Rod Pin , Stop Pin , Spring Pin , R Rod Pin | Color: | Material Original Color |
Type: | Hydraulic Breaker Parts | ||
Highlight: | Chisel Pin Hydraulic Breaker Parts,Rock Breaker Stop Bush Pin,Hydraulic Breaker Chisel Pin |
Hydraulic Breaker Parts All Models of Breaker Stop Pin Chsiel Pin Bush Pin
Hydraulic Breaker Parts All Models of Breaker Stop Pin Chsiel Pin Bush Pin Details:
Rod Pin Size | Stop Pin Size | Spring Pin Size | R Rod Pin Size | ||||||||||
Model | Length | Width | High | Model | Type | Diameter | Length | Model | Daimeter | Length | Model | Diameter | Length |
SB45 | 122 | 54 | 30 | SB45 | Stop Pin | 17 | 140 | SB20 | 12 | 80 | SB20 | 24 | 114 |
SB45 with Hole | 190 | 54 | 30 | Front Cover | 20 | 132 | SB30 | 10 | 100 | 28 | 114 | ||
SB50 | 160 | 60 | 32 | SB50 | Stop Pin | 17 | 170 | SB40 | 16 | 80 | SB30 | 24 | 130 |
SB50 with Hole | 230 | 60 | 32 | Front Cover | 26 | 145 | SB43 | 16 | 130 | 28 | 130 | ||
SB81N with Hole | 275 | 80 | 40 | SB81N | Stop Pin | 17 | 220 | SB50 | 17 | 20 | 32 | 128 | |
SB81 | 215 | 89 | 45 | Front Cover | 26 | 200 | 26 | 30 | SB40 | 30 | 156 | ||
SB81 with Hole | 305 | 89 | 45 | SB81 | Stop Pin | 20 | 220 | SB81N | 17 | 20 | 35 | 156 | |
SB100 | 230 | 95 | 50 | Front Cover | 30 | 200 | 26 | 30 | 36 | 156 | |||
SB100 with Hole | 315 | 95 | 50 | SB100 | Stop Pin | 17 | 220 | SB81 | 20 | 25 | 38 | 156 | |
SB121 | 256 | 97 | 52 | Front Cover | 26 | 200 | 30 | 35 | SB43 | 32 | 165 | ||
SB121 with Hole | 325 | 97 | 52 | SB121 | Stop Pin | 17 | 250 | SB100 | 17 | 20 | 42 | 165 | |
SB131 | 256 | 97 | 52 | Front Cover | 26 | 250 | SB121 | 17 | 20 | 38 | 165 | ||
SB131 with Hole | 325 | 97 | 52 | SB131 | Stop Pin | 17 | 250 | 26 | 30 | 38 | 178 | ||
SB151 | 260 | 100 | 50 | Front Cover | 26 | 250 | SB131 | 17 | 20 | ||||
SB151 with Hole | 350 | 100 | 50 | SB151 | Stop Pin | 26 | 250 | 26 | 30 | ||||
HB20G | 195 | 80 | 40 | Front Cover | 36 | 270 | SB151 | 26 | 30 | ||||
HB20G with Hole | 260 | 80 | 40 | HB20G | Stop Pin | 20 | 220 | 36 | 35 | ||||
HB30G | 210 | 89 | 45 | Front Cover | 30 | 145 | |||||||
HB30G | Stop Pin | 20 | 220 | ||||||||||
Front Cover | 30 | 200 |

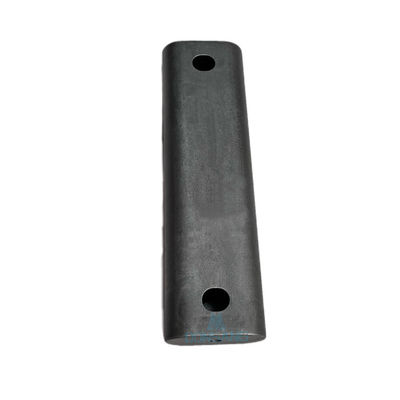

Hydraulic Breaker Parts All Models of Breaker Stop Pin Chsiel Pin Bush Pin Picture
