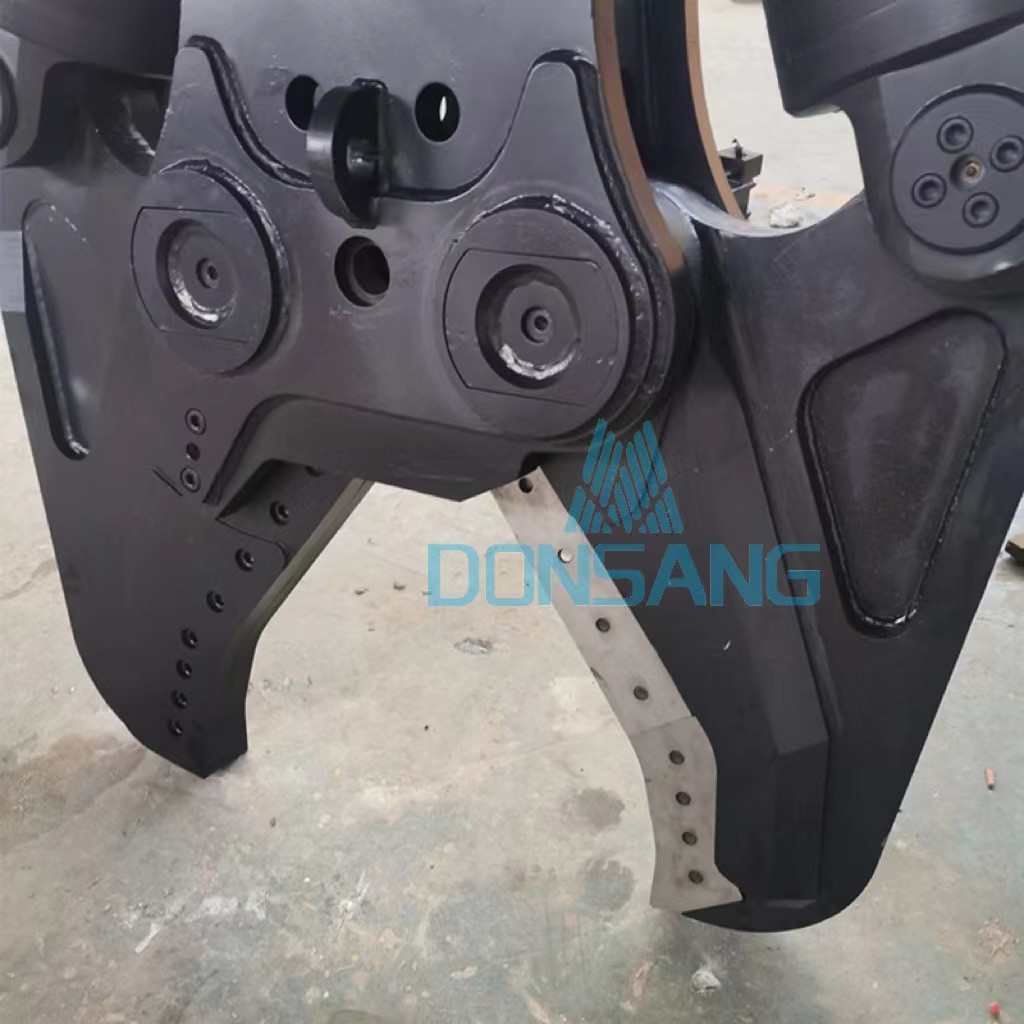

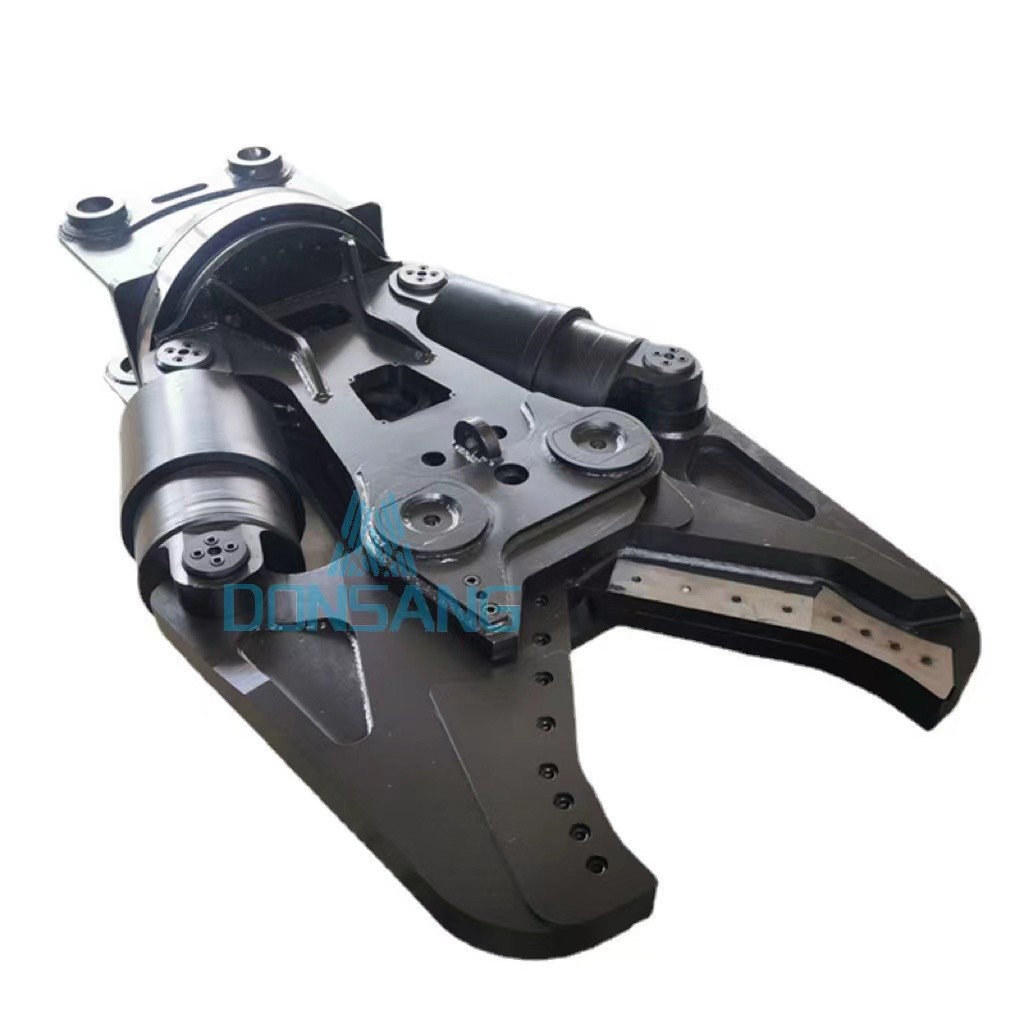

30Tons Concrete Pulverizer Attachment For Excavator Hydraulic Concrete Muncher

Basic Information
Place of Origin: CHINA
Brand Name: DONSANG
Certification: CE ISO9001
Model Number: DS20CP
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: WOODEN CASE
Delivery Time: 15 WORKING DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 Pcs Per Months
Operating Weight: 2250kg Operating Pressure: 32mpa
Oil Flow: 180-280l/min Crushing Force: 1370kn
Cutter Length: 210mm Max Open: 1100mm
Highlight:

30Tons Concrete Pulverizer Attachment

,

Concrete Pulverizer Attachment For Excavator

,

Excavator Hydraulic Concrete Muncher

Concrete Pulverizer Environment Friendly Design For Building Rebuilding DS20CP

Concrete Pulverizer 20Tons 30Tons Guide for your Crushing Business 360 degree rotation



The Concrete Pulverizer is a tool Designed for controlled demolition and recycling of concrete slabs,walls,bridge decks,and More.Concrete Pulverizers are designed for quiet, controlled demolition and recycling of concrete structures. All Concrete Pulverizer models feature patented pin-on Swift Lock teeth that allow field change-out in minutes. Concrete Pulverizers are actuated by the excavator's bucket cylinder—no additional hydraulic circuits are required.





Features:
  • Custom lever arms to provide maximum crushing power
  • Uses existing excavator hydraulics - no additional circuits are required
  • 100% welds around heavy torque tubes to minimize torsional stresses
  • Swift-Loc Pin on replaceable tooth system comes standard



Concrete Cutter Pulverizer DS10CP Details



Item Unit DS20CP
Operating Weight kg 2250
Operating Pressure mpa 32
Oil Flow l/min 180-280
Crushing Force kn 1370
Cutter Length mm 210
Max Open mm 1100
Applicable Excavator ton 20-30



The all Concrete Cutter Pulverizer Models We Can Make



Item Unit DS10CP DS20CP DS10SP DS20SP
Operating Weight kg 1500 2250 2150 3100
Operating Pressure mpa 32 32 32 32
Oil Flow l/min 150-250 180-280 180-200 200-250
Crushing Force kn 950 1370 4600 6700
Cutter Length mm 180 210 / /
Max Open mm 950 1100 445 560
Applicable Excavator ton 12-20 20-30 14-20
20-30
18-25
25-35

Concrete Cutter Pulverizer Other Details



30Tons Concrete Pulverizer Attachment For Excavator Hydraulic Concrete Muncher 0

30Tons Concrete Pulverizer Attachment For Excavator Hydraulic Concrete Muncher 1

30Tons Concrete Pulverizer Attachment For Excavator Hydraulic Concrete Muncher 2

30Tons Concrete Pulverizer Attachment For Excavator Hydraulic Concrete Muncher 3
