Type: | Hydraulic Breaker Spare Parts | Model: | SB121 ,Customized |
---|---|---|---|
Material: | Gr15, 9CrNiMo,20Cr2Ni4A | Color: | Material Color Or Customized Etc |
Packing: | Standard Wooden Box | Production Capacity: | 35000 Pcs/Year |
After Sales Service: | Long Time Service | Warranty: | 6 Months |
Number: | DS9P | ||
Highlight: | SB121 Hydraulic Breaker Piston,STD Size Hydraulic Breaker Piston,Piston Rock Breaker Spares |

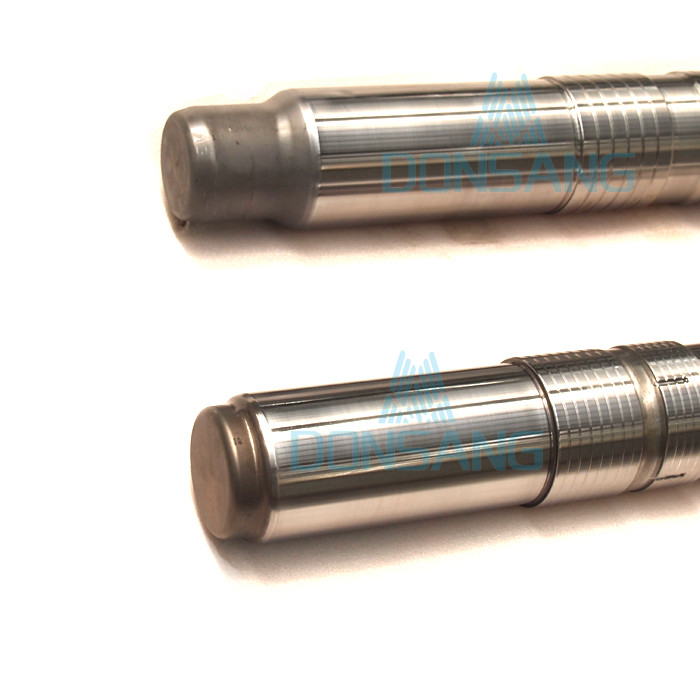

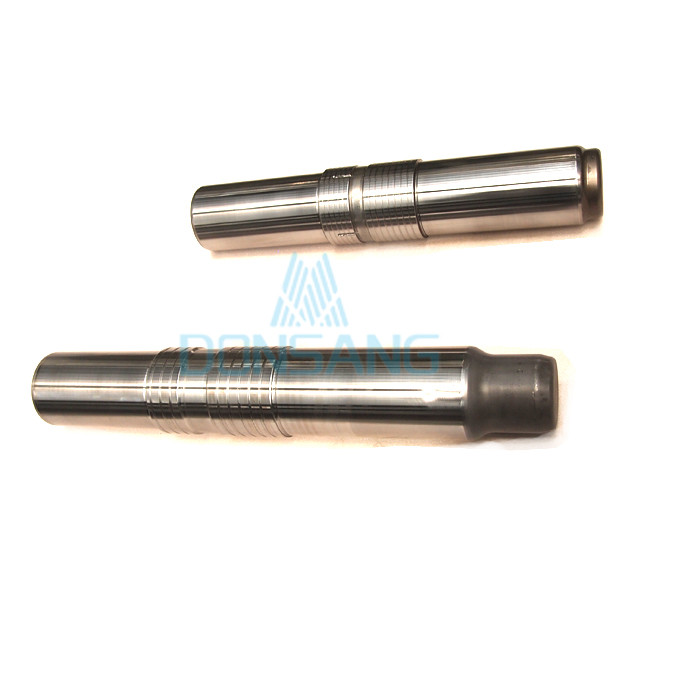

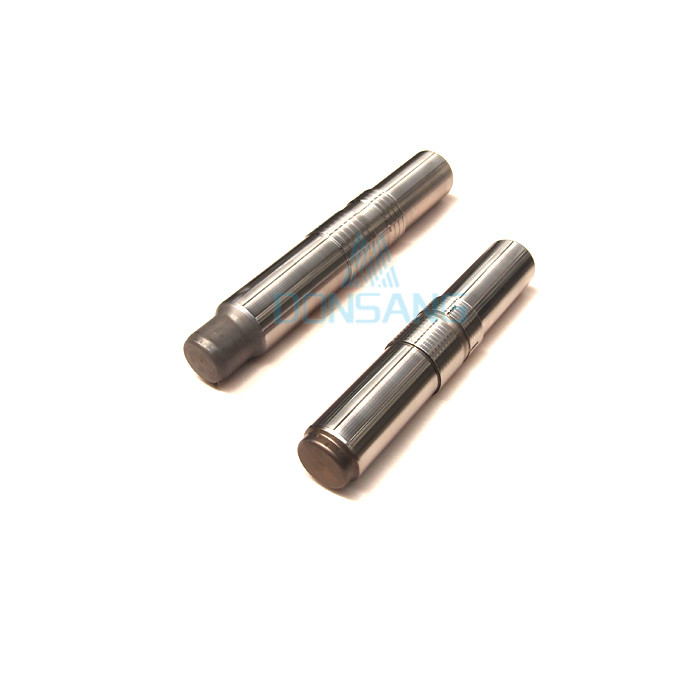

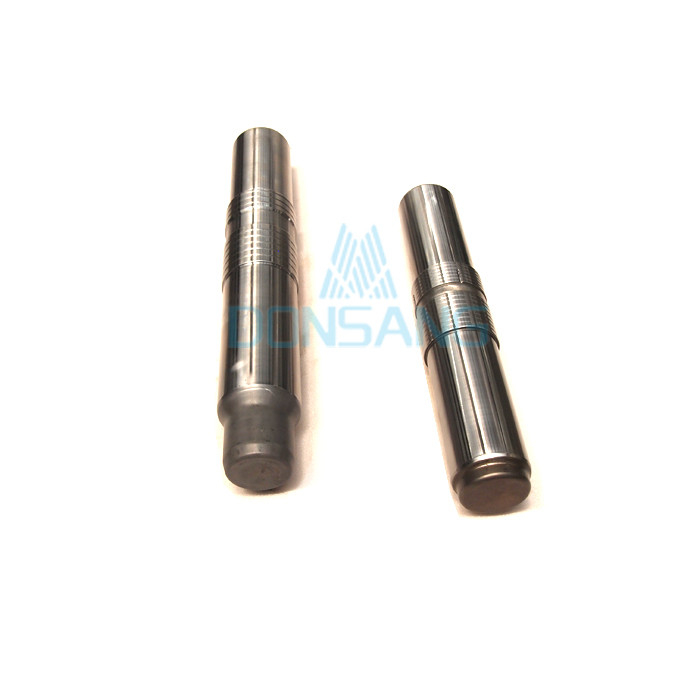

Hydraulic Breaker Piston Soosan Type SB121 Excellent Quality After Sell Service
Hydraulic Breaker Piston STD Size Soosan Type SB121 Excellent Quality After Sell Service
A hydraulic breaker consists of a boom, arm, and hydraulic breaker, which are driven by hydraulic cylinders, as shown in Figure 1 A model of a rock-breaker is presented here to demonstrate how clearances affect its dynamic behaviour. The rock-breaker model includes ten revolute joints with clearance. The joints at the top and bottom of boom cylinder 1 are denoted as P1 and P2. Similarly, the joints on the arm and breaker cylinders are designated as P3, P4, P5, and P6, respectively. The revolute joints, O3, A, and B, connecting the arm to the breaker also have clearances. Note that point P6 has two joints P6 and P6′ that are homocentric. The bearing of joint P6 connects to the rod of breaker cylinder 3, and the bearing of P6′ connects to link 1. Meanwhile, the sharing journal and link 2 are bonded together. The other joints in the clearance model are ideal revolute joints. The clearance model is the hydraulic breaker model with ten clearance joints. In contrast, all revolute joints in the ideal model are at an ideal condition. More details of Hydraulic breaker piston caring please discuss with us .
Hdraulic Breaker Piston SB121 Model Details
Type | Hydraulic Breaker Spare Parts |
Model | SB121 ,Customized |
Material | Gr15, 9CrNiMo,20Cr2Ni4A |
Color | Material Color or Customized |
Packing | Standard Wooden Box |
Production Capacity | 35000 Pcs/Year |
Application | 6 months |
Our Hydraulic Breaker Piston Production Scope
Krupp | HM45,HM50/55,HM60/75,HM85,HM130/135,HM170/185,HM200,HM300/301/305,HM400/401,HM550/560CS,HM580,HM600/601 HM700/702/705,HM710/720CS,HM800,HM900/901/902,HM950/960CS,HM1200,HM1300/1500CS,HM1800/2000CS,HM2200/2500CS |
RAMMER | S21,S20/22,S23/D30,S24,S25,S26,S29,S52,S54/D60,S55,S56/D70,S82,S83/D110,S84,S86,ROX100,ROX400,ROX700, E64,E66,E68,G80,G100,G120 |
N.P.K | H08X,H1XA,H2XA,H3XA,H4X,MB5X/6X,H7X,H8XA,H9X,H10X,H10XB/10XE,H11X/14X,H12X,H16X,H20X/20XE,H12X/E212,H18X/E218 |
INDECO | MES350,HB5,MES553,MES621,MES1200,HB12,HB19,MES1800,HB27,MES2500 |
MONTABERT | BRH30,BRH40,BRH45,BRH60,BRH76/91,BRP100,BRP130,BRP125,BRH250, RH501,BRH620, BRH625,BRH750,BRV32 |
FURUKAWA | HB05R,HB1G,HB2G,HB3G,HB5G,HB8G,HB10G,HB15G,HB20G,HB30G,HB40G,HB50G, |
TOKU | TNB1E,TNB2E,TNB4E,TNB5E/6E,TNB7E/8E/10E,TNB13E,TNB14E/16E,TNB22E |
OKADA | OUB301,OUB302,OUB303,OUB305,OUB308,OUB310,OUB312,OUB316,OUB318, UB8,UB11,UB14 |
SOOSAN | SB10,SB20,SB30,SB35,SB40,SB43,SB45,SB50,SB60,SB70,SB81,SB81NSB100,SB121,SB130,SB151 SH200,SH400,SH700,SH18G,SH20G,SH30G,SH35G,SH40G,SH50G |
KWANGLIM | SG200,SG300,KSG350,SG400,SG600,SG800,SG1200,SG1800,SG2100,SG2500, |
DAEMO | DMB03,DMB04,DMB06,DMB4000,DMB5000,S150-V,S500-V,S900-V,S1300-V,S1800-V,S2200-1,S2200-2,S2500,S3000/3600/4500 |
ATLASCOPCO | TEX75/80/100H/HS,TEX110H/HS,TEX180H/HS,TEX250H1,TEX400H/HS,TEX600/700/900H/HS,TEX1400H/HS,TEX1800/2000H/HS |
GB | GB1T,GB2T,GB3T,GB4T,GB5T,GB6T,GB8T,GB8AT,GB11T,GB14T,GB170E,GB220E,GB290E/300E,GB400E |
Our Hydraulic Breaker Other Details
Packing / Factory
